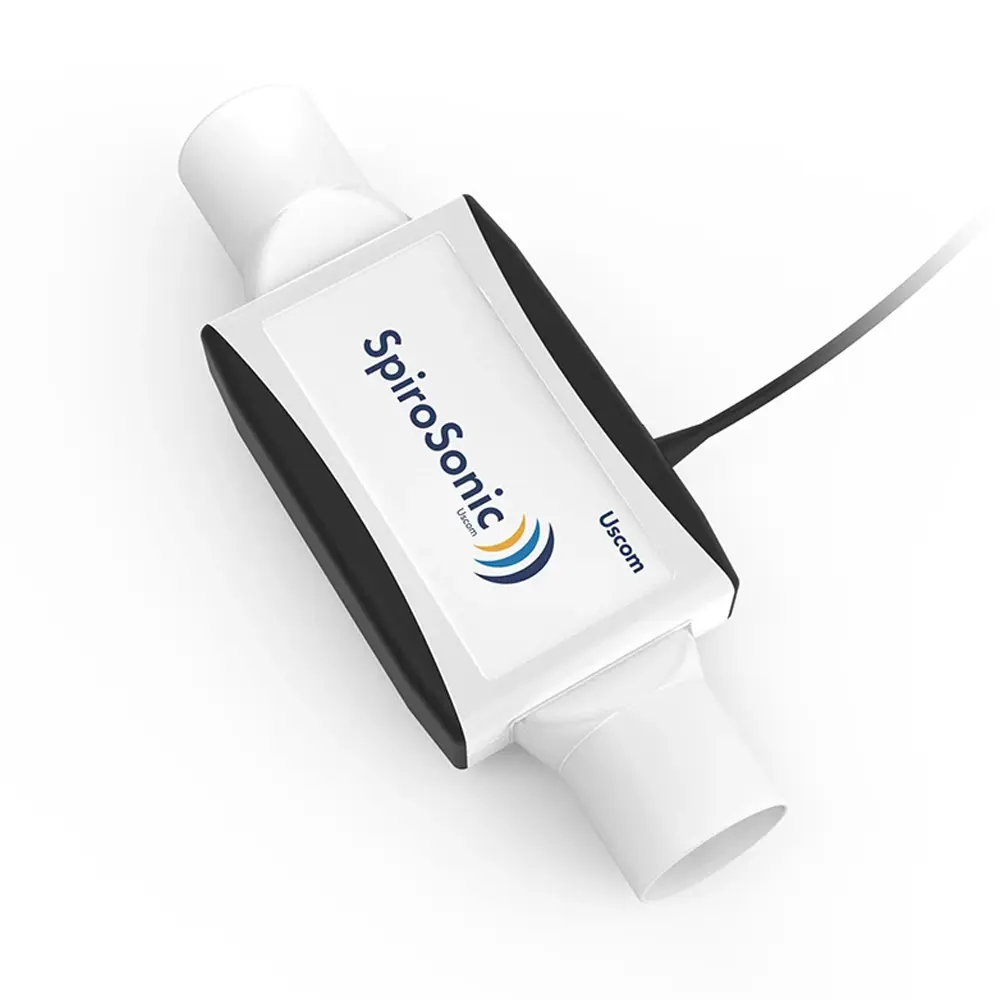

Uscom SpiroSonic FLO
The SpiroSonic FLO Spirometer is a USB, PC Based Spirometer.
This Spirometer uses ultrasonic technology making it highly accurate, especially on low flow detection. The SpiroSonic Flow requires the use of Bacterial Filters in order prevent cross contamination. The SpiroSonic FLO spirometer connects to our Software in order to give you a single platform which tests Audiometry, Spirometry & Vision Screening, all on one application.
Asthma, COPD and Occupational Lung Disease: Asthma, COPD and occupational lung disease are common and increasing pulmonary conditions which can be effectively diagnosed and managed with simple and accurate spirometry. Digital ultrasonic spirometry provides a cost effective monitor for all pulmonary conditions.
Accurate, Portable and Simple Digital Pulmonary Monitoring: Digital ultrasonic spirometry – with its low resistance flow dynamics – is ideal for use with small children and provides accurate monitoring even for the elderly and sick with poor lung function. The sealed flow tube design also allows for more effective cleaning and disinfection.
The Global Standard of Pulmonary Care: Digital ultrasound is the most accurate method of measuring lung function, and the SpiroSonic FLO provides affordable lung function analysis to best diagnose and monitor pulmonary disease and the effectiveness of therapy.
Complete Solution for PC-based Ultrasonic Spirometry: SpiroReporter is an innovative software solution that provides a digital platform to archive patient examinations and images, trend progress over time, analyse spirometry outputs and generate summary reports.
SpiroSonic FLO delivers accurate spirometry through advanced multi-path ultrasonic digital technology. Its extremely low resistance to flow makes it suitable for children, elderly and sick patients with asthma, COPD and O.L.D.
FEATURES:
- Accurate digital multipath ultrasonic technology.
- Automatic internal calibration.
- Low flow resistance – suitable for children, elderly and sick patients.
- Diagnostic decision support system with SpiroReporter.
- Digital voice guided operation with SpiroReporter.
- Simple and effective disinfection.
SOFTWARE:
All-inclusive spirometry software solution that provides measuring, archiving, analysis, trend analysis, reporting, exporting and much more.
- Multiple predictive algorithms.
- Pediatric incentive screen.
- Automatic interpretation module.
- Pharmaceutical testing subsystem.
- Optional Pulse Oximetry (SpO2).
- All standard medical interfaces (HL7, GDT, BDT, XML).
- Complete stress testing procedures.
- Complete integration package with driver communication support DLL and example source code (optional)
SPECIFICATION:
- Volume Accuracy: ± 2.5% or 50 mL whichever is greater
- Flow Accuracy: ± 2.5% or 50 mL/s whichever is greater
- Resolution: 3 mL/sec
- Maximum Volume: ± 20 L
- Flow Range: ± 14 L/sec
- Sample Rate: 100 Hz
- Flow Tube Dimensions: Ø30 × 165 mm
- Device Dimensions: 28 × 61 × 94 mm
- Device Weight: 122 g
- Communication: Connection to PC via USB (Type A)
- Power Supply: USB 5V (USB socket of PC)
- Standard pulmonary function parame-ters (evaluated by SpiroReporter): AEX, ELA, EOTV05, EOTV1, ERV, EV, EV%FVC, FEF25, FEF50, FEF50/FIF50, FEF50%FIF50, FEF75, FET, FEV05, FEV05%FVC, FEV075, FEV075/FVC, FEV1, FEV1%FEV6, FEV1%FIVC, FEV1%FVC, FEV1%VC, FEV3, FEV3%FVC, FEV6, FEV1/FVC, FIF25, FIF50, FIF75, FIT, FIV1, FIV1%FIVC, FIVC, FVC, IC, IRV, IVC, MMEF2550, MMEF2575, MMEF5075, MVV, PEF, PEFT, PIF, RR,TE, TE/TI, TI, tR, TV, TV/TI, VC, VE, VPEF, ZeroTime
