Titmus V4 Vision Screener

The Titmus V4 Vision screener is a robust Vision Screener. It includes a Control Panel But can also interface directly with our software, which is the route most of our customers go.

With the Titmus V4 & our Software, we are able to create standard as well as customised pass/refer criteria for specific sites. The printout indicates the minimum score, the actual score & also the pass/refer result. This make it easy for operators to understand.

The Titmus V4 uses high quality materials which results in it having superior quality when compared to its competitors.

FEATURES:

Compact and Portable: Features an built-in handle for ease of transport. Optional carrying case with wheels available.

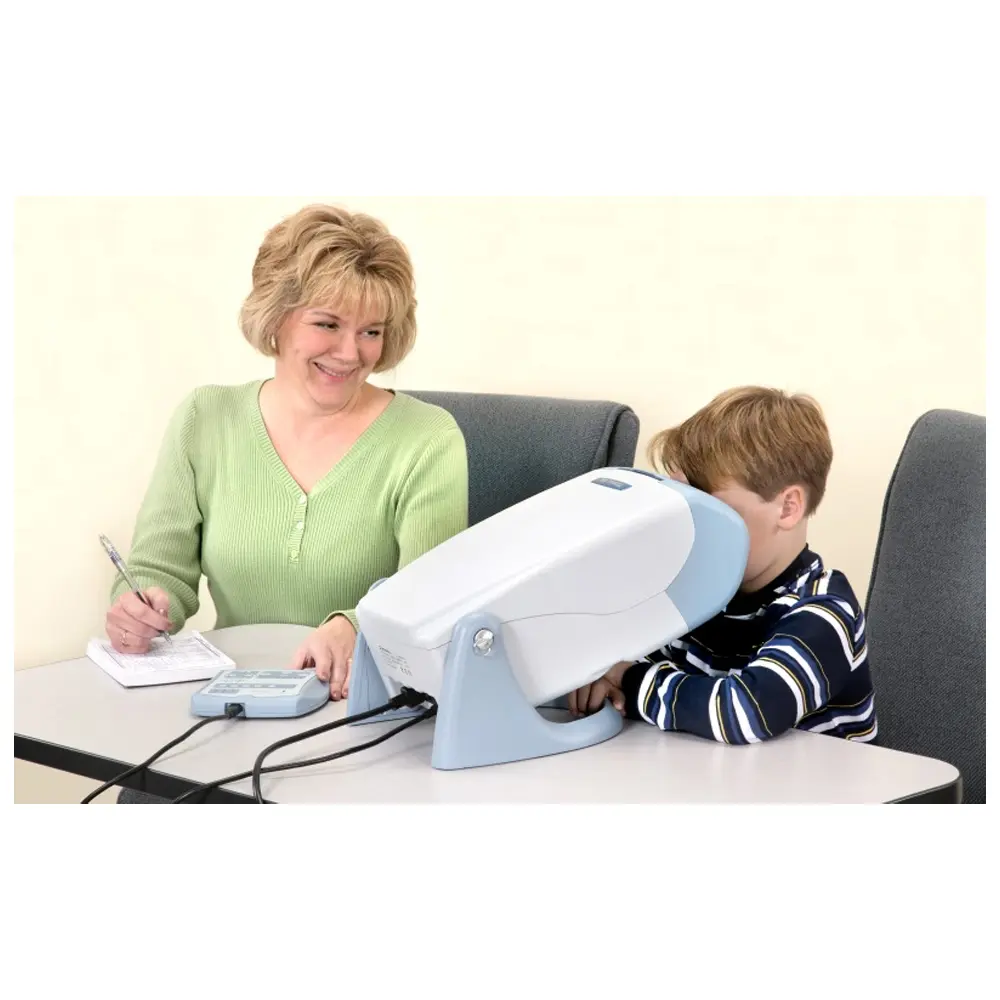

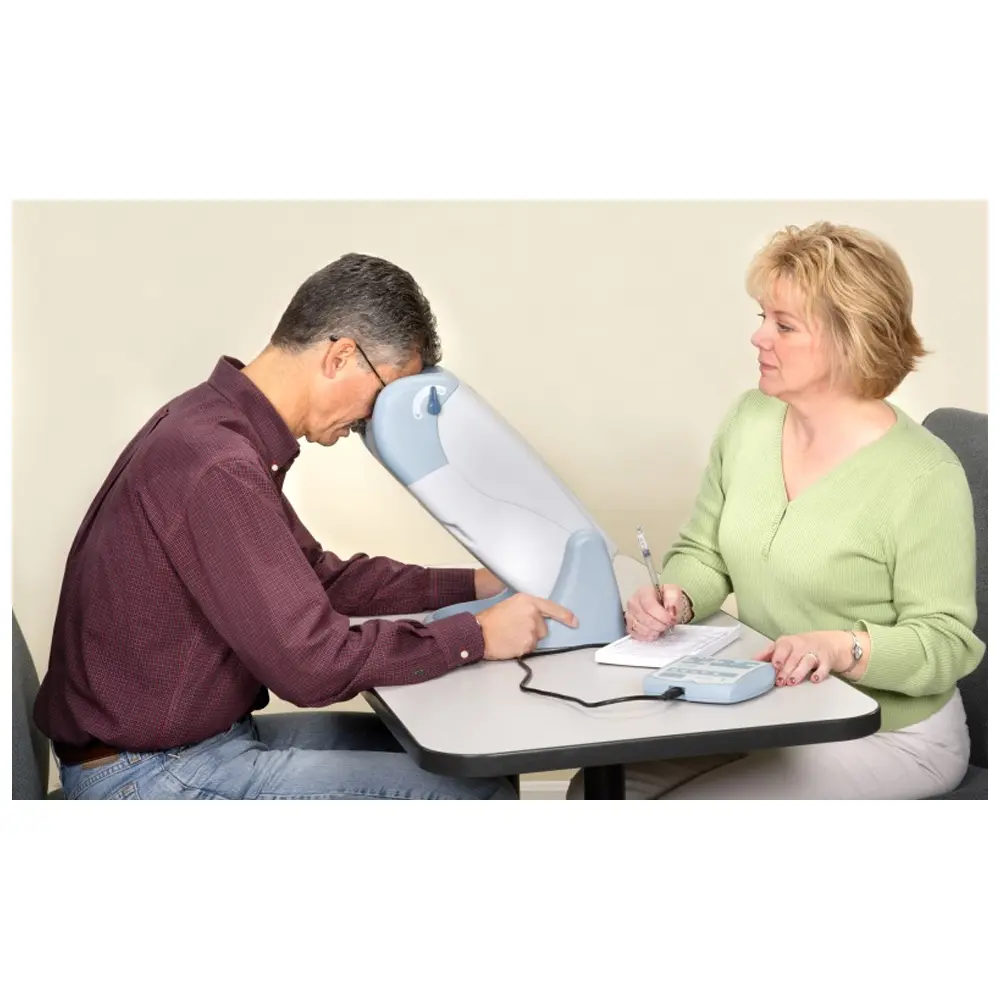

Ergonomics: Unique design that accommodates both adults and children, either standing or seated. Ensures patient is in a comfortable position for testing – needed for efficient and accurate testing.
Testing: Tests at 20 feet (6m) for FAR and 14 inches (35cm) for NEAR vision. A variety of tests are available to screen for visual acuity, muscle balance (horizontal and vertical phoria), depth perception, color perception, and binocular vision. Total of 16 tests per vision screener (based on slide set selected).
Fluorescent Light Source: Improves slide illumination, replicates actual daylight conditions and provides true color testing. Light will give years of extended service (10000 hours).
Membrane Control Panel: Instrument controls located at your fingertips for ease of operation. Ease of placement – helps where space is limited. Indicators on panel for far/near, patient head position, eye occlusion, test slide position. Membrane Panel indicates when to replace light.
Foam Headrest: Soft headrest to ensure correct head position. Easy to clean.
Head Sensor: Electronic check to ensure correct head position. Patient cannot see tests, if head is incorrectly positioned.

ADDITIONAL FEATURES:

Peripheral Vision Testing: Can perform peripheral vision testing in the horizontal visual field at 85°, 70°, 55° and nasal 45° for each eye.
Night Vision Testing: Can screen vision at night-driving conditions.
Intermediate or Plus Lenses (Optional): Five additional lenses are available to identify vision problems at actual working distance (intermediate vision) of 19, 22, 26, 32 and 40 inches (50, 57, 67, 80 and 100 cm). Plus lenses with values of +1.00, +1.50, +1.75 and +2.25 are also available for testing children’s vision.

TEST SLIDES AVAILABLE:

Other test slide sets are also available:

Occupational: Used by Occupational Health Professionals for screening vision of adults for various job functions.
Professional: Used by Family Physicians, General Practitioners for general screening of vision for both adults and children.
Aeromedical: Used by Aeromedical Examiners for screening vision of pilots.
Pediatric: Used by Pediatricians for general screening of vision for younger children.
School: Used by Family Physicians, Pediatricians for general screening of vision for all school children.

WARRANTY:

The Titmus V4 Vision Screener has a warranty for a period of two (2) years against defects in materials and workmanship from date of purchase. Warranty includes the light module.

STANDARD ACCESSORIES:

8 Test Slides made from high grade photographic film sealed between optical-quality glass
Training Manual
Record Forms – pad of 100 forms to record test results
10 Lens Cleaning Wipes
Package of 3 Fog Eliminator Cloths
Accessory Case for storing lens cleaning wipes, fog eliminator cloths, and lenses
Dust Cover for instrument storage

ELECTRICAL STANDARDS:

Meets the following CE, UL, and CSA Standards:

Europe: EN 60601-1, IEC 60601-1, 3rd ed, Class I, Annex IX of MDD 93/42/EEC
USA: AAMI ES 60601-1
Canada: CSA-C22.2, No. 601.1-M90, Class I Device
CB Scheme: IEC 60601-1

TECHNICAL DATA:

Power Supply: 110-240 VAC, 0.4A-0.2A, 50/60 Hz
Cords:
1. Power cord, length 3 meters
2. Control panel cord, FireWire connector, length 1.00 meter
Illumination: Per ISO 8596 and ANSI Z80.21 Stds
Dimensions: W X L X H units (closed condition), 11.00 X 17.00 X 7.75 inches, 28 X 43 X 19 cm
Weight: 13 lbs / 6 kg
Temperature: +50°F to +104°F (+10°C to +40°C)
Humidity: 30% to 75% (non-condensing)
Pressure: 80-106 kPa
