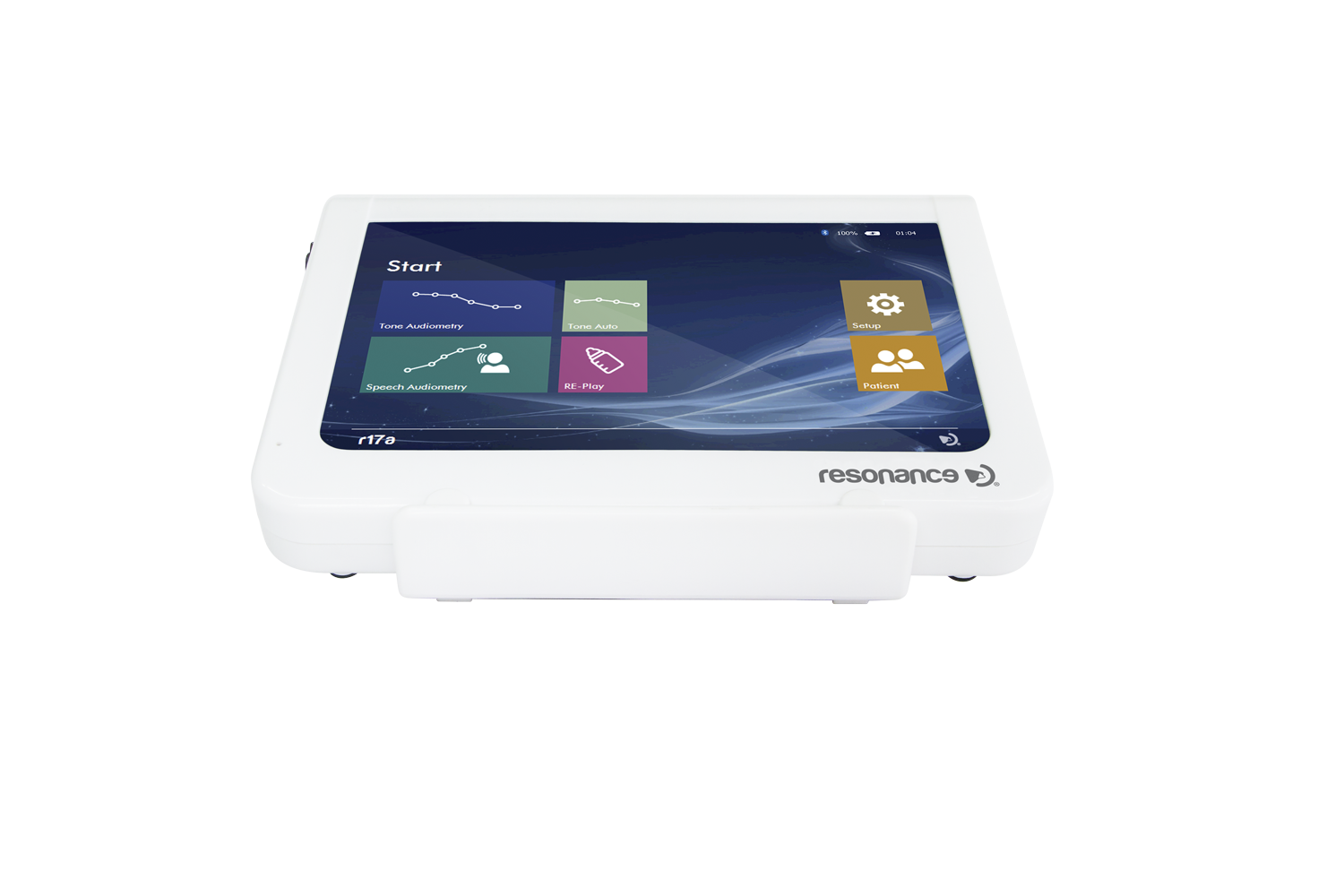

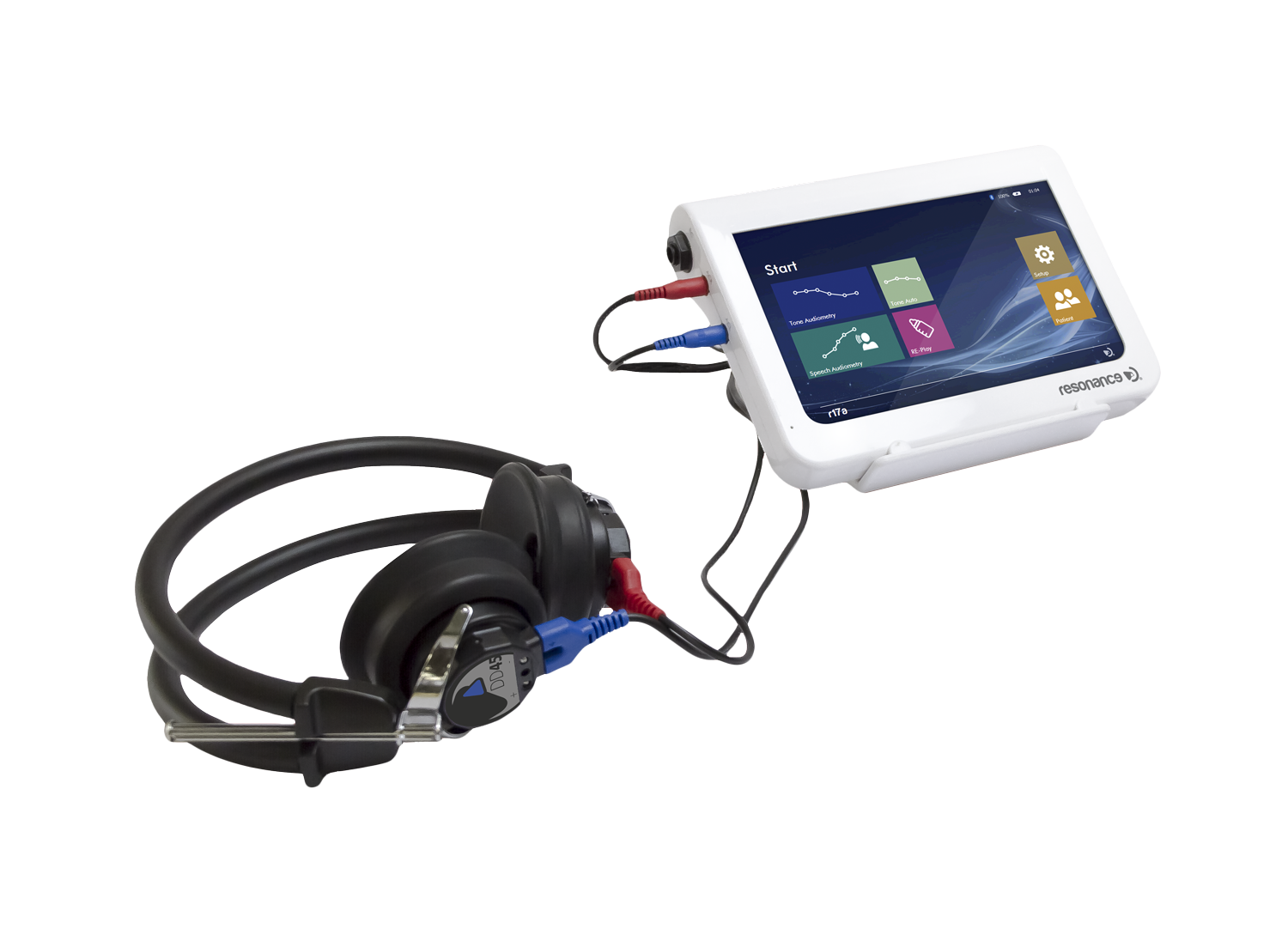

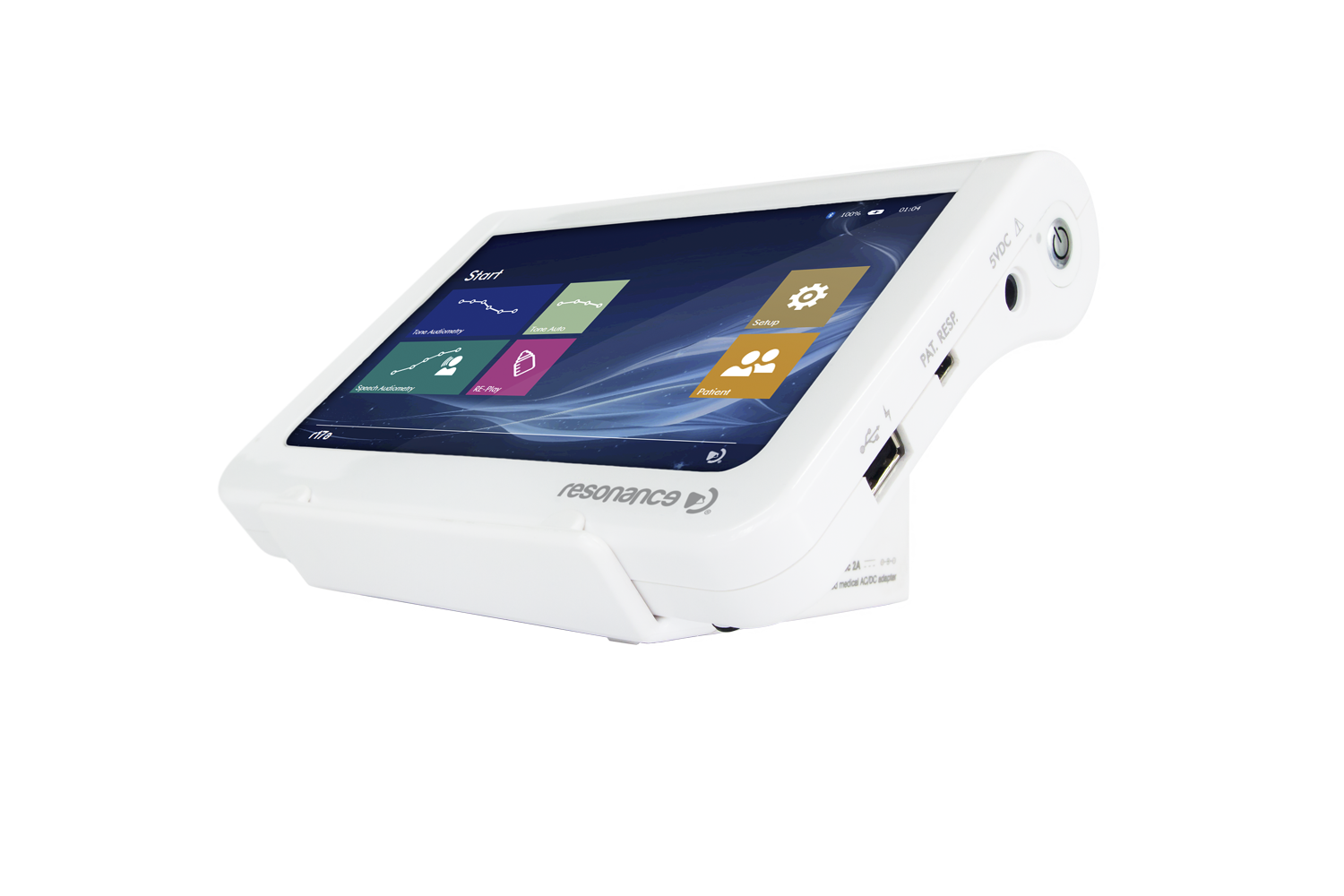

Resonance R17A Portable Diagnostic Audiometer

The Resonance R17A has three options.

1.) R17A – This is Portable Audiometer with Air Conduction only – Download Brochure

2.) R17A-BC – This is a portable Audiometer with Air Conduction & Bone Conduction – Download Brochure

3.) R17A- HDA – This is a portable Audiometer with High Frequency Audiometry (Up to 16kHz) & Bone Conduction – Download Brochure

The above units have an easy to use interface, perfect for portable diagnostic Audiometry.

GENERAL SPECIFICATIONS

DIMENSIONS AND WEIGHT

• L x W x H: 180 x 135 x 41 mm

• Net weight: 450 g.

• Body material: self-extinguishing ABS

TEST TYPES

Pure Tone test, Speech Test (performed with on-board

recorded speech material), Autothreshold, Resonance

Play Audiometry (optional)

DISPLAY

• 7” TFT Resistive touch screen display

• 800 by 480 resolution at 133 pixels per inch (ppi) 262K

colors

USER INTERFACE

• Intuitive icon system

REPORTS

• Data transfer to PC with Resonance Management Data

Suite installed

DATA TRANSFER TO PC

• Bluetooth 2.1

USB PORT

• Nr.1 USB host type A

(pen drive connection for software upgrade)

• Nr.1 mini USB slave

(for patient response connection)

WINDOWS® COMPATIBLE SOFTWARE

• Resonance MDS Management Data Suite

MAIN SYSTEM COMPONENTS

• Operative system: Microsoft® Windows®

Embedded Compact

• CPU: TEGRA® 2 dual core @ 1Ghz
