Resonance R15C Lite Screening Portable Combined Audio-Tymp

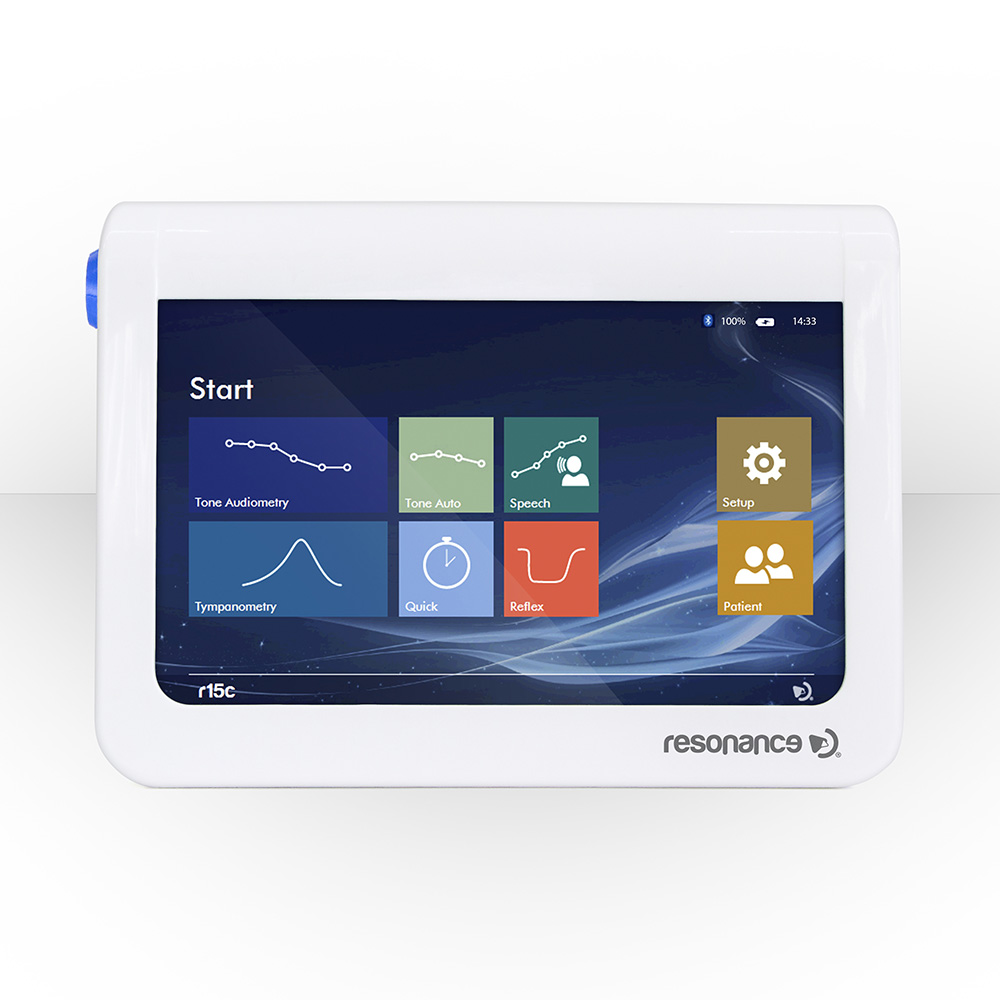

Bring full clinical capability wherever your patients are with the Resonance R15C-Lite Portable Audio-Tymp—the only handheld device that combines screening/clinical audiometry and advanced middle ear analysis in one ultra-light package.

Perform air-conduction pure-tone audiometry from 125–8000 Hz (-10 to 110 dB HL) with automatic Hughson-Westlake threshold testing and talk-forward function, plus complete tympanometry at 226 Hz and high-frequency 1000 Hz (perfect for neonates and infants), automatic ipsilateral acoustic reflex testing (0.5, 1, 2, 4 kHz), quick combined tymp+reflex protocols, and customisable test sequences—all managed through a bright, large colour touchscreen with intuitive icons and child-friendly animations.

Weighing just 570 g and powered by a long-life rechargeable battery, the R15C-Lite features an internal patient database for over 500 records and seamless wireless data transfer to PC via Resonance MDS software. Fully compliant with IEC 60601-1 and FDA cleared, it’s the go-to choice for schools, mobile clinics, pediatrics, and ENT practices that refuse to compromise on accuracy.

GENERAL SPECIFICATIONS

DIMENSIONS AND WEIGHT

L x W x H: 180 x 135 x 41 mm
Net weight: 570 g.
Body material: self-extinguishing ABS UL 94 V0

TEST TYPES

Tympanometry, Acoustic Reflex, Quick Test (sequence of Tympanometry and Reflex test) with editable protocols, High Frequency Tympanometry, Jerger Norm and Auto classification.

Pure tone Audiometry with possibility to store indications about hearing threshold and UCL, Autothreshold automated audiometry based on Hughson-Westlake algorithm.

DISPLAY

7” TFT Resistive touch screen display
800 by 480 resolution at 133 pixels per inch (ppi) 262K colours. Functional even with vinil gloves.

USER INTERFACE

Intuitive icon system
Internal patient database

REPORTS

Data transfer to PC with Resonance Management Data Suite installed
Dedicated report template

DATA TRANSFER TO PC

Bluetooth 2.1
USB cable (available as optional)

USB PORT

Nr.1 USB host type A (pen drive connection for software upgrade)
Nr.1 mini USB slave

WINDOWS® COMPATIBLE SOFTWARE

Resonance MDS Management Data Suite

MAIN SYSTEM COMPONENTS

Operative system: Microsoft® Windows® Embedded Compact
CPU: TEGRA® 2 dual core @ 1Ghz

POWER

POWER SUPPLY

Built-in 3.6V/3.1 Ah rechargeable lithium-ion battery
External Medical power supply/charger: Input 100 – 240 Vac / 0.3 A – 50/60 Hz; Output +5 Vdc / 2 A

CONSUMPTION WITH RECHARGEABLE BATTERY

Up to 2 hours of continuous testing.
Charge time with external medical power supply: up to 80% in 2 hours

ENVIRONMENTAL

OPERATING ENVIRONMENT

Storage: -20° C up to +50° C
Operating: +15° C up to +35° C
Humidity: up to 90%, (non-condensing)
Ambient pressure: from 700 hPa up to 1060 hPa

TYMPANOMETRY OPERATING SPECIFICATIONS

PROBE TONE

226 Hz, 85 dB SPL
1000 Hz, 75 dB SPL for Admittance (Y) curve with added Susceptance (B) and Conductance (G) curves
The probe is supplied in handheld mode

INTENSITY

226 Hz: 85 dB SPL ± 2 dB
1000 Hz: 75 dB SPL ± 2 dB
Frequency Accuracy: ± 0,5%
Harmonic Distortion (THD): Less than 1%

ADMITTANCE MEASUREMENTS

Compliance range at 226 Hz: 0.05 up to 7 ml
Sensitivity scale: Auto Scales to appropriate range, available scale at 226 Hz 1, 2, 5 and 7 ml
1000 Hz: 0 to +25 mmho
Sensitivity scale: Auto Scales to appropriate range, available scales 5, 10, 15, 20, 25 mmho

AIR PRESSURE

Control: Automatic
Range: two selections available: +100/-200 daPa or +200/-400 daPa
Pressure accuracy: ±10 daPa or ±10%
Sweep rate: automatic adaptive speed control or fast (200 daPa/sec)
Indicator: Measured value is displayed
Safety limitations: -750 up to +550 daPa

ACOUSTIC REFLEX TESTS

Reflex test method: Threshold and Fixed level
Stimulus duration: 0.5 or 1 sec.
User selectable protocols for all test methods
Ipsi stimulation for all reflex test.
Automated peak search functions available for Quick Test

FREQUENCIES AND INTENSITY RANGES

Ipsilateral:

Pure tone level range (dB HL) from 50 to 100
Frequency: 1000 Hz
Accuracy: ±1%
Harmonic distortion (THD): less than 3%

AUDIOMETRY OPERATING SPECIFICATIONS

RANGE

Frequency range (AC): 125 – 8000 Hz
Range stimuli level -10 up to 110 dB HL

ACCURACY

Frequency < 0.5%
Distortion < 1%
Crosstalk >70dB
Attenuator linearity 1 dB per 5 dB step, max 3 dB whole range

TYPE OF SIGNALS

Pure tone: sine wave 125 to 8 Khz signal
Warble: +/- 5% frequency sine wave modulated, modulation: sine wave 5 Hz
Narrow band noise: 24 dB/oct filtered noise
On/Off rise – fall time: 40 msec

OUTPUT TRANSDUCERS

ACR, ACL: 10 ohm DD45 matched pair earphone

STIMULUS PRESENTATION MODALITY

Presentation: Normal
Modality: Steady, Pulsed (rate 2 Hz)
dB step variation: 1 dB, 2 dB, 5 dB.

QUALITY SYSTEM

Manufactured, designed, developed and marketed under an ISO 13485, ISO 9001 certified quality system. Medical CE marks and FDA approval.

COMPLIANCE/REGULATORY STANDARDS

Designed, tested and manufactured to meet the European and International Standards:

MDD 93/42/EEC and its revised versions: Class IIa (as referred to in Annex IX, rule 10 of said MDD 93/42 EEC)
Safety: IEC 60601-1, 3rd edition, Class II Type BF
EMC: IEC 60601-1-2
Impedance: IEC 60645-5 and ANSI S 3.39 Type 2
Audiometry: IEC 60645-1 and ANSI S 3.6 Type 4

STANDARD ACCESSORIES

Probe HF
Probe cleaning tool kit
Starter Kit of ear tips available in different sizes.
Calibration cavity
DD45 Headphones
Build in talk over microphone for patient communication
Patient response push button
Resonance® MDS Software
Medical Power supply (100 Vac – 240 Vac)
Carrying bag
Pen Drive (with Multilingual Quick user’s handbook)
Touch screen pen

OPTIONALS

B71W Bone Conductor
IP30 insert earphones for AC use
4 IPSI lateral reflex frequencies licenses
RE-VO, USB Videotoscope
RE-CAM, digital video endoscopy camera
Wi-Fi thermal printer
External USB Keyboard
Re-Play audiometry for children
USB cable for data transfer
