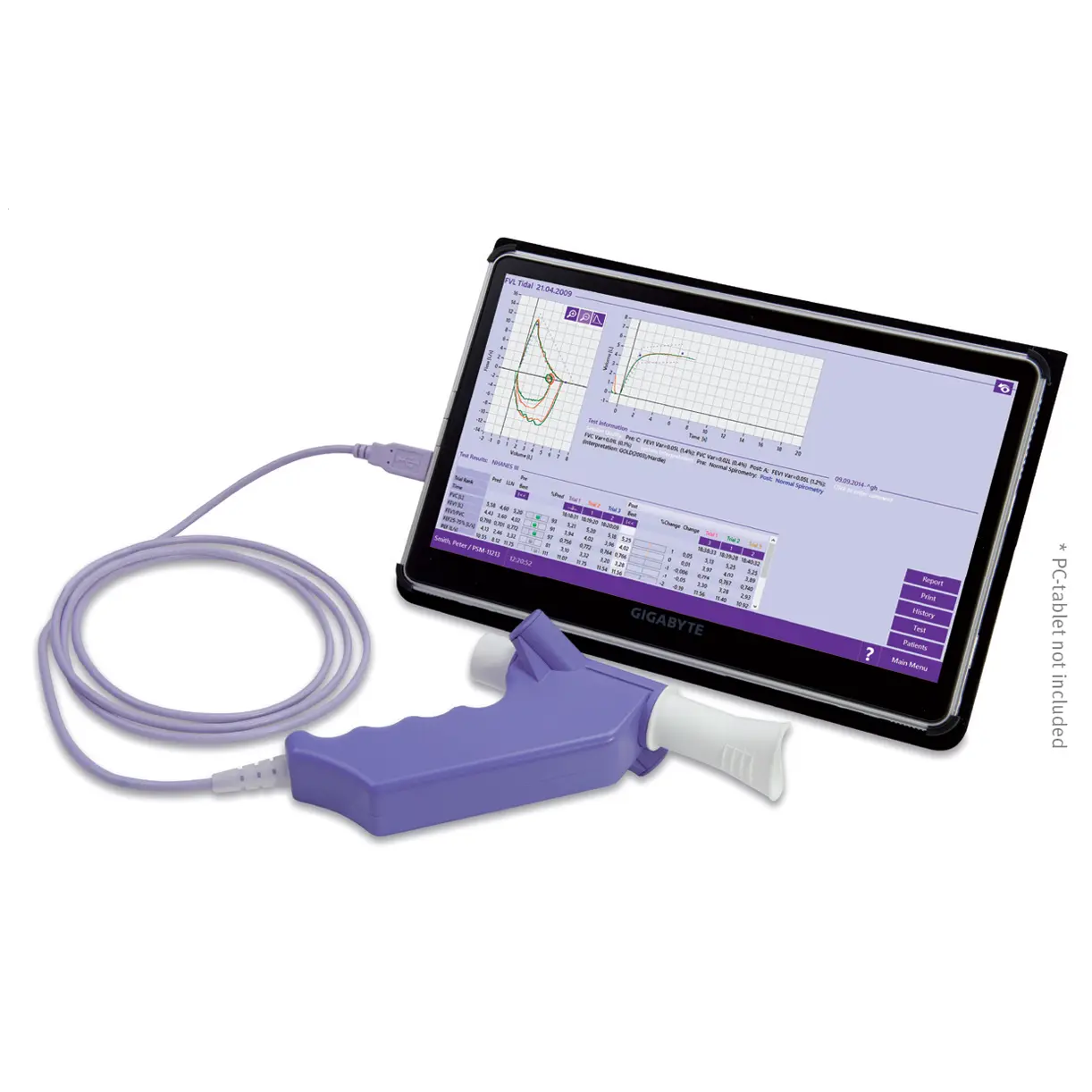

Ndd Easy On PC-Based Spirometer

Ndd Easy On PC-Based Spirometer

CONTACT US TO ORDER

Download Brochure

The proven ultrasound technology Ndd TrueFlow: no calibration, no warm-up time, no moving parts.

The Ndd Easy on PC is a very easy (hence the name) to use spirometer. The software is called Easyone Connect, it’s well thought out in order to offer the user a simple interface with an array of parameters. The Ndd Easy On PC is often used in doctors offices as well as in Occupational Health Clinics. The Easy On PC uses ultrasonic technology, meaning it detects low flows with accuracy, allowing for easier testing. It has audible beeps when a person/patient has reached the required plateau. It is compliant with both international & local standards. It has both ECCS/ERS as well as GLI predicted standards. It also has a multitude of Interpretation options such as NICE(2010).

The Ndd Easy On PC is also compatible with our local software, which offers Audiometry, Spirometry, Vision Screening and Health (COF) on one platform. The original ultrasonic flow measurement is highly accurate in all flow ranges, independent of gas composition, pressure, temperature and humidity and does not require calibration during its life-time. The sensor is never in direct contact with the patient‘s flow. Ndd TrueFlow is a hygienic and resistance-free solution.

FEATURES:

  • Real time curves and pediatric incentives
  • Intuitive PC-based solution
  • Automated user guidance throughout manoeuvres based on current ATS/ERS standards
  • Reproducible results ensure comparability in multicenter studies
  • Immediate test quality feedback in accordance with ATS/ERS criteria
  • Export of pdf files and raw data
  • Flexible HL7 and XML interface for easy EMR integration
  • Absolute hygienic solution with Spirette consumable eliminates the risk of cross-contamination
  • Customisable reports
  • Powerful data-management

STANDARDS & RECOMMENDATIONS:

  • Quality, Medical Devices & Electrical: EN ISO 9001, EN ISO 13485, EN ISO 14971, EN 62366, EN 62304, EN ISO 26782, EN ISO 23747, IEC 60601-1, IEC 60601-1-2
  • FDA: 510(k) market clearance
  • MDD 93/42/EEC: CE marked
  • Associations & Institutes: ATS/ERS 2005, NIOSH/ OSHA, SSA Disability

LANGUAGES:

  • English, French, German, Spanish, Italian, Brazilian-portuguese, Dutch, Russian, Vietnamese, Turkish

TECHNICAL:

  • Printing options: Direct to printer or over network.
  • Data management: EasyWare Pro
  • Interface: HL7, XML, GDT
  • No. of tests: > 10‘000 tests
  • Age range: Spirometry > 4 years
  • Device classification: Type BF applied part
  • Operating conditions: Temp 0 – 40 °C/32 – 104 °F, Rel. Humidity 5 – 95 %, Atmosph. Pressure 500 – 1060 hPA

REQUIREMENTS PC / LAPTOP

  • Hard disk capacity: Installation/ system 1 GB, Data up to 4 GB, RAM 2 GB
  • Operating system: Windows XP SP3, Windows Vista, Windows 7, Windows 8 and 8.1 (32 and 64 bit)

PARAMETERS:

  • FVC: ATI, BEV, EOTV, FEF10, FEF25, FEF2575, FEF2575_6, FEF40, FEF50, FEF50/FVC, FEF50/VCmax, FEF60, FEF75, FEF75-85, FEF80, FET, FET25-75, FEV.25, FEV.5, FEV.5/FVC, FEV.75, FEV.75/FEV6, FEV.75/FVC, FEV.75/VCmax, FEV1, FEV1/FEV6, FEV1/FVC, FEV1/FVC6, FEV1/VCmax, FEV1/VCext, FEV3/FVC, FEV3/VCmax, FEV3, FEV6, FVC, FVC6, MEF20, MEF25, MEF40, MEF50, MEF60, MEF75, MEF90, MMEF, MTC1, MTC2, MTC3, MTCR, PEF, PEFT, t0, VCext, VCmax
  • FVL: ATI, BEV, CVI, E50/150, EOTV, FEF10. FEF25, FEF2575, FEF2575_6, FEF40, FEF50, FEF50/FVC, FEF50/VCmax, FEF60, FEF75, FEF75-85, FEF80, FET, FET25-75, FEV.25, FEV.5, FEV.5/FVC, FEV.75, FEV.75/FEV6, FEV.75/FVC, FEV.75/VCmax, FEV1, FEV1/FEV6, FEV1/FIV1, FEV1/FVC, FEV1/VCmax, FEV1/VCext, FEV3/FVC, FEV3/VCmax, FEV3, FEV6, FIF25, FIF50, FIF50/FEF50, FIF75, FIV.25, FIV.5, FIV1, FIVC, FVC, MEF20, MEF25, MEF40, MEF50, MEF60, MEF75, MEF90, MIF25, MIF50, MIF75, MMEF, MTC1, MTC2, MTC3, MTCR, PEF, PEFT, PIF, t0, VCext, VCmax
  • SVC: ERV, IC, IRV, Rf, VC, VCex, VCext, VCin, VCmax, VT
  • MVV: MVV, MVV6, MVVtime, VT

PREDICTED NORMAL VALUES SPIROMETRY

  • GLI: Stanojevic 2009, Quanjer 2012
  • North America: NHANES III (Hankinson) 1999, Knudson 1983, Knudson 1976, Crapo 1981, Morris 1971 & 1976, Hsu 1979, Dockery (Harvard) 1993, Polgar 1971, Gutierrez (Canada) 2004, Eigen 2003
  • Latin America: Pereira 1992, Perreira 2006 & 2008, Pérez-Padilla (PLATINO) 2006, Pérez-Padilla (Mexico) 2001, Pérez-Padilla (Mexico, Pediatrics) 2003, Chile 2010, Chile (Pediatrics) 1997
  • Europe: ERS (ECCS, EGKS, Quanjer) 1993, Zapletal 1977, Zapletal 2003, Rosenthal 1993, Austria 1988, Austria 1994, Sapaldia 1996, Roca (Spain, SEPAR) 1982, Garcia-Rio (SEPAR) 2013, Vilozni 2005, Falaschetti 2004, Klement (Russia) 1988
  • Europe Scandinavia: Hedenström 1985 & 1986, Gulsvik (Norway) 1985, Berglund Birath (Sweden) 1963, Langhammer (Norway) 2001, Finnish 1982 (1998), Nystad 2004
  • Australia: Hibbert 1989, Gore Crockett 1997
  • Africa, Asia: Ethiopia 1985, JRS 2001

FLOW / VOLUME SENSOR

  • Type: Ultrasonic transit time
  • Range: ± 16 l/s
  • Resolution: 4 ml/s
  • Accuracy: ± 2% or 0.02 l/s
  • Volume: ± 2% or 0.050 l
  • Flow: ± 2% or 0.020 l/s
  • PEF: ± 5% or 5 l/min
  • MVV: ± 2% or 0.050 l
  • Resistance: ~ 0.3 cm H2O/l/s
  • Sample rate: 400 Hz
